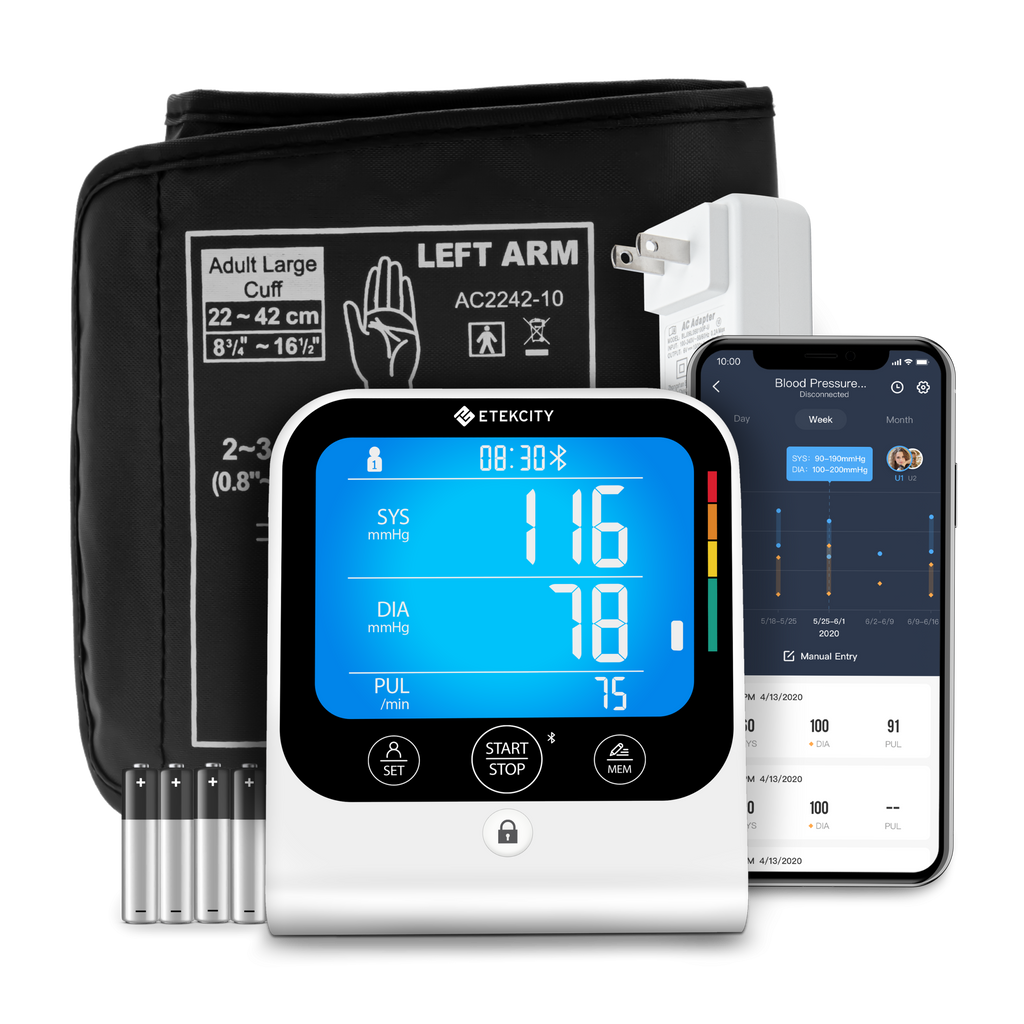

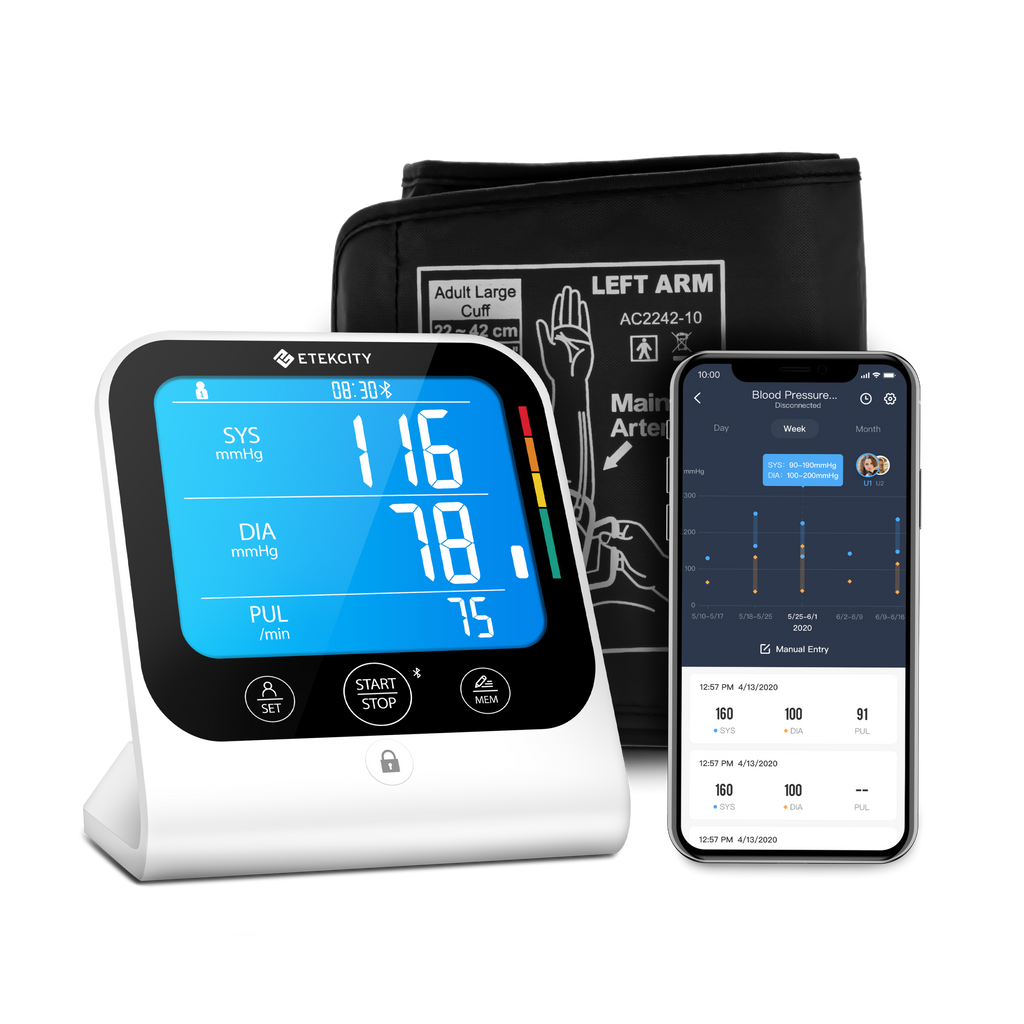

TMB-1583-BS Smart Blood Pressure Monitor

Product Specifications

• Power Supply: 4 x 1.5V AAA Batteries
• DC Output: 6V, 1A
• AC Adapter: Model: TRANSTEK BLJ06L060100P-U
• Input: AC 100–240V, 50/60Hz 0.2A Max
• Output: DC 6V, 1A Note: Please use the AC adapter authorized by the manufacturer.
• Display Mode: Digital LCD, V. A. 3.3 x 2.9 in / 8.4 x 7.3 cm
• Measurement Mode: Oscillographic Testing Mode
• Measurement Range: Rated Cuff Pressure: 0–299 mmHg / 0–39.9 kPa
• Measurement Pressure: SYS: 60–230 mmHg / 8.0–30.7 kPa, DIA: 40–130 mmHg / 5.3–17.3 kPa, Pulse: 40–199 beats/minute
• Accuracy: Pressure: 5°–40°C within ±3 mmHg / 0.4 kPa, Pulse: ±5%
• Units: mmHg / kPa
• Operating Environment: Temperature: 41°–104°F / 5°–40°C, Relative Humidity: 15–90%, non-condensing, but not requiring a water vapour partial pressure greater than 50 hPa, Atmospheric Pressure Range: 700–1060 hPa
• Transport & Storage Environment: Temperature: -4°–140°F / -20°–60°C, Relative Humidity: ≤ 93% non-condensing, at a water vapour pressure up to 50 hPa
• Dimensions: Monitor: 4.2 x 4.1 x 4.6 in / 10.7 x 10.3 x 11.8 cm, Cuff Circumference: 8.6–16.5 in / 22–42 cm
• Weight: 0.55 lb / 0.25 kg (excluding batteries and cuff)
• Mode of Operation: Continuous Operation
• Degree of Protection (Arm Cuff): Type BF Applied Part
• Water Protection Level: IP21 (protected from touch by fingers and objects greater than 12 millimeters and protected from condensation)
• Device Classification: Battery Powered Mode: Internally Powered ME Equipment AC Adapter Powered Mode: Class II ME Equipment
• Software Version: A01
• Automatic Shutoff: 120 seconds Note: Can be customized in the VeSync app.
• UPC: 810043372237
